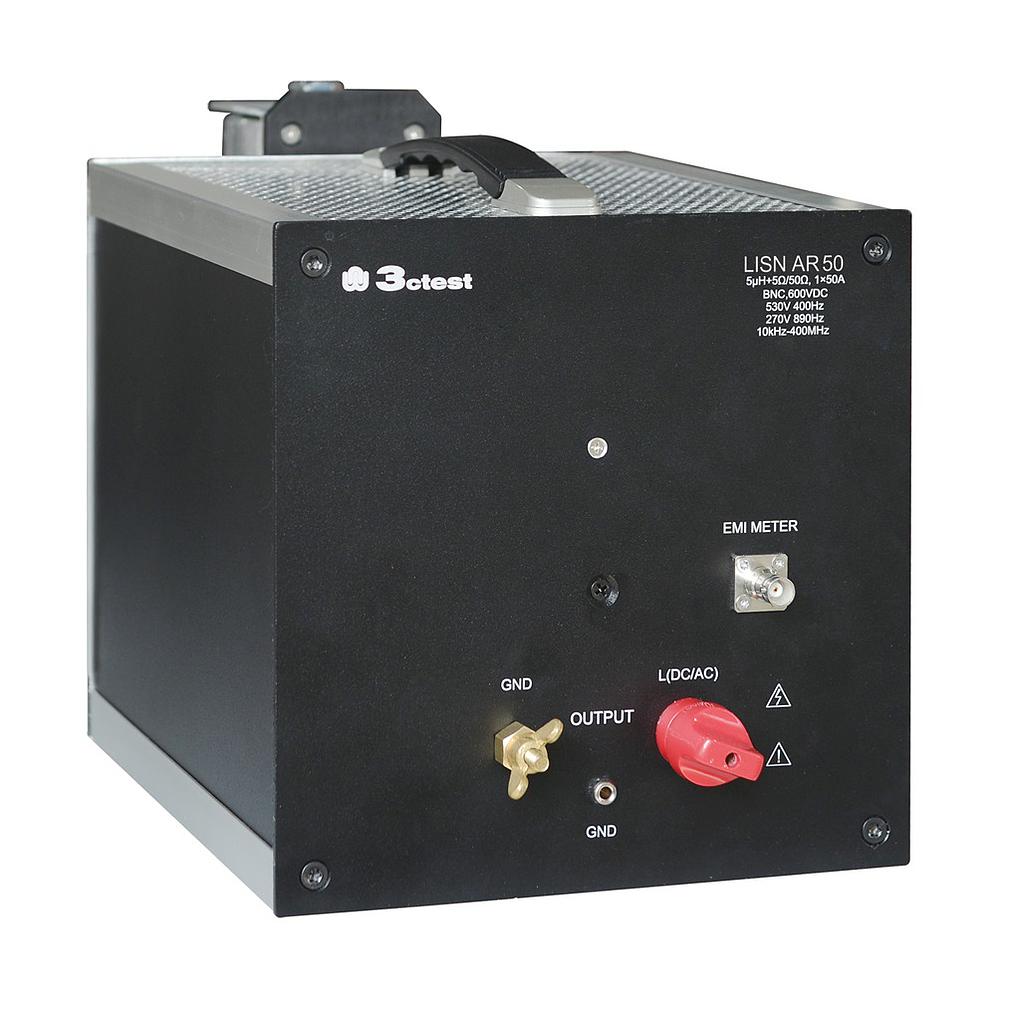

3ctest LISN AR 50 Line Impedance Stabilization Network (0.01 MHz ~ 400 MHz)

- Technical Parameters:

Test Voltage (Vmax): 600 VDC, 530 V 400 Hz, 270 V 890 Hz

Test Current (Imax): 50 A

Transient Max. Current: 100 A

Coaxial Terminal: BNC type

Inductance: 5 μH

Coupling Capacitor: 0.1 μF

Impedance Frequency Scope: 0.01 MHz ~ 400 MHz

- General Parameters:

Dimension: 220 mm (L)×220 mm (W) ×257 mm (H)

Weight: Approx. 5 kg

Ambient Temperature: 15 ℃ - 35 ℃

Relative Humidity: 45% - 75%

Atmosphere Pressure Range: 86 kPa – 106 kPa
