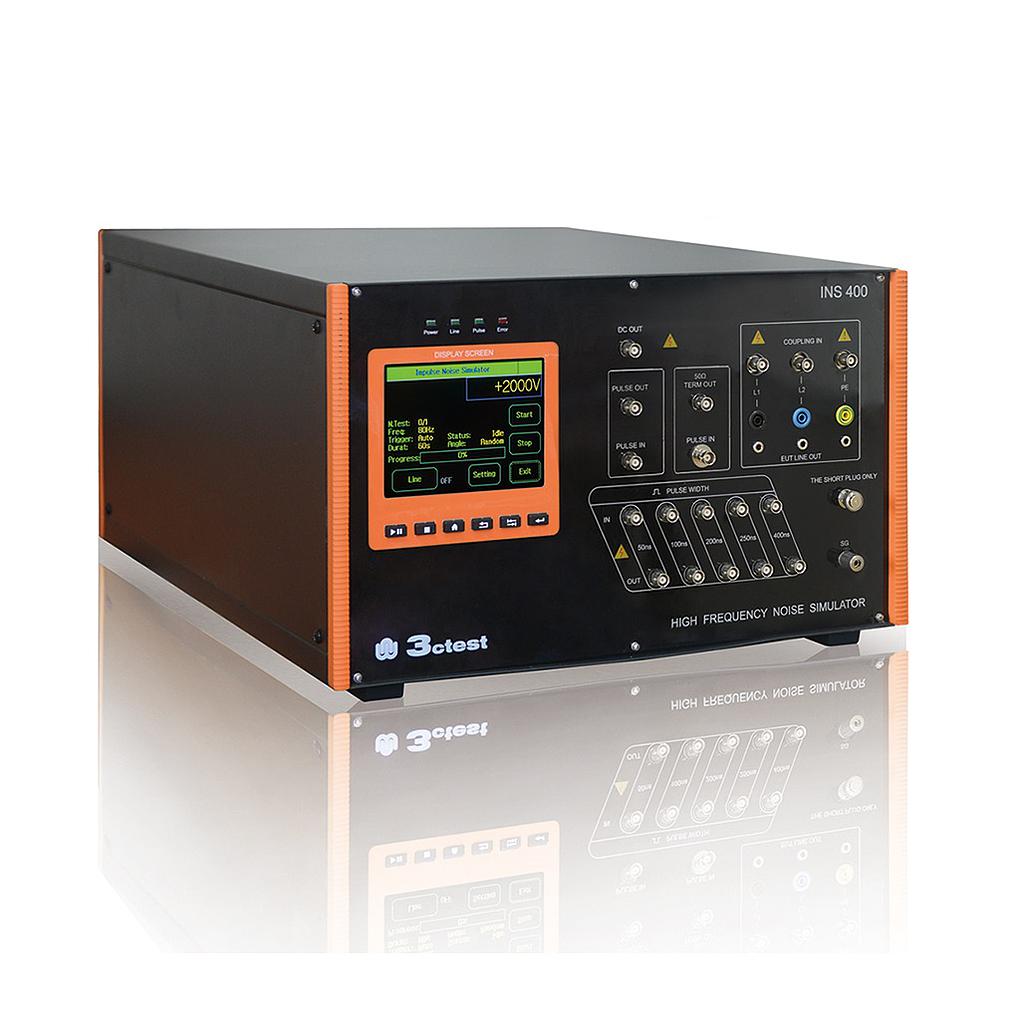

3ctest INS 400 High Frequency Noise Simulator (0.1 kV ~ 2 kV ± 10%)

- Technical Parameters:

Output Voltage: 0.1 kV ~ 2 kV±10%,Built-in 50 terminal load

Polarity: Positive or negative

Source Impedance: 50 Ω

Rise Time: ＜1 ns

Pulse Width: 50 ns ~ 1000 ns (50 ns step)

Repetition Frequency: 20 Hz ~ 90 Hz, ±10%

Phase Sync: 0～359°±10%（only L1-L2）

EUT Capacity: AC240 V 16 A、DC 60 V 16 A

Trigger Mode: Manual, auto, external

- General Parameters:

Mains Supply: AC 110/220 V，土10%，50/60 Hz

Ambient Temperature: 45%-75%RH（no condensing）

Relative Humidity: 15 ℃-35 ℃

Size: 21 inch，6U

Weight: Approx. 30 kg
