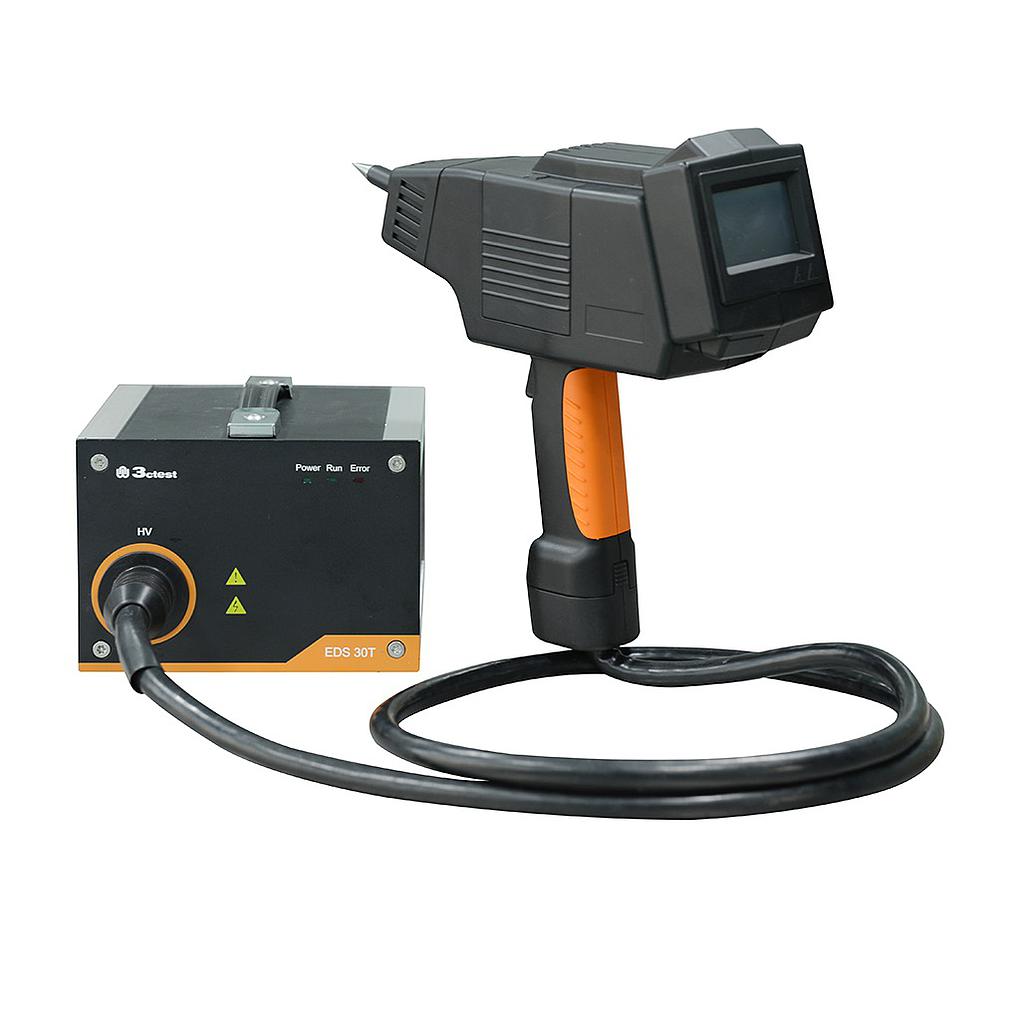

3ctest EDS 30T Electrostatic Discharge Simulator (200 V – 30.000 V （±5%))

- Technical Parameters:

Contact discharge: 200 V – 30,000 V （±5%）

Air discharge: 200 V – 30,000 V （±5%）

Voltage step: 100 V

Hold time: ＞ 5 s

Polarity: Positive, negative

RC module recognition: Automatic recognition &LCD display

Temperature and humidity: Built-in temperature and humidity meter with functions of record and protection

Repetition frequency: Single /0.1/0.2/0.5/1/2/5/10/20 Hz

Trigger mode: Manual/automatic

Pulse Counter: 1-9999

Contact discharge: 150pF/330 ohm

Rise time: 0.8 ns +/- 25%

Quick start test program: Simple and easy to reset data online

Evaluate procedure: Contact discharge test at 20 Hz，evaluate the test points of DUT

Standard Test Procedure: accord with EN/IEC61000-4-2

- General Parameters:

Weight: Approx. 12.0 kg

Weight (EDS gun): Approx. 2.0 kg

Temperature: 15 ℃-35 ℃（operation condition）

Humidity: 30%-60%（operation condition）

Air pressure: 86 kPa-106 kPa

Working power supply: 100 V - 240 V（±10%）; 50/60 Hz（default AC 220 V 50 Hz for China Mainland）
