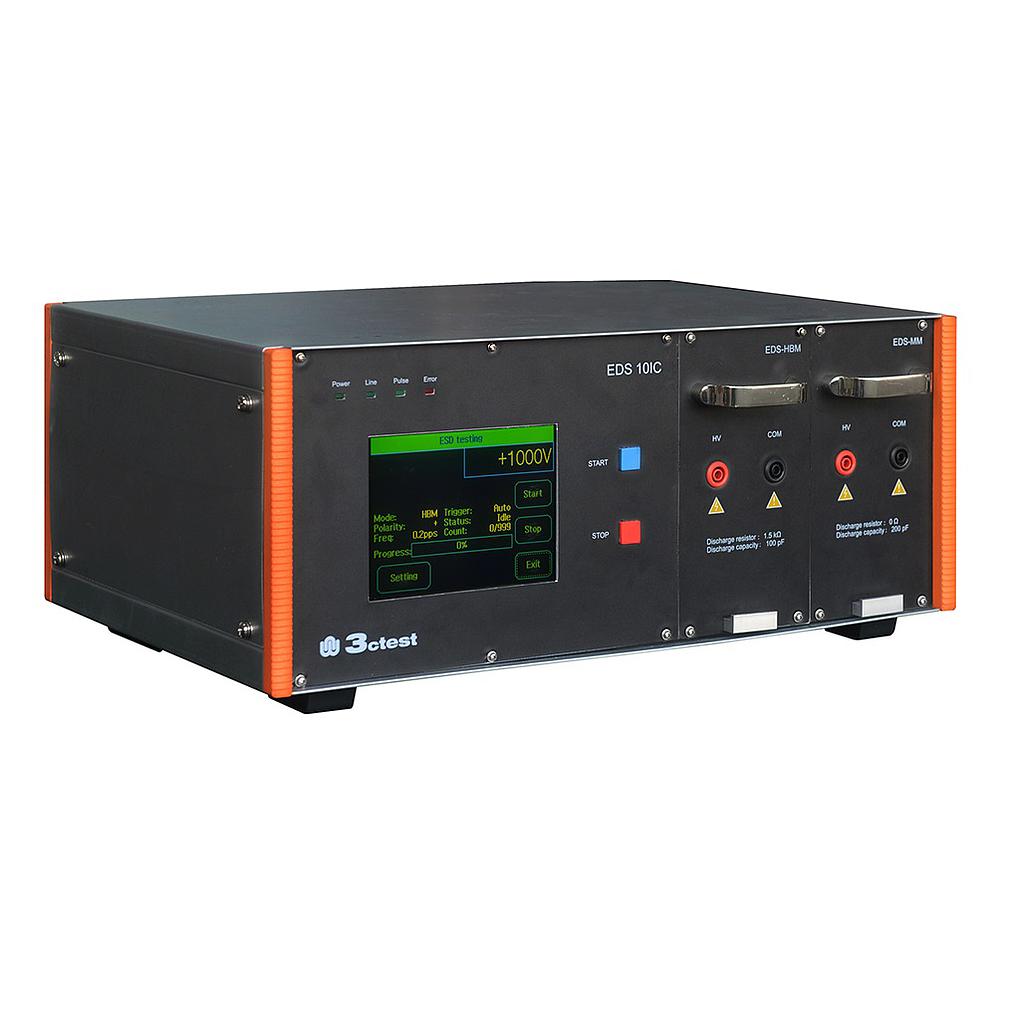

3ctest EDS 10IC Electrostatic Discharge Simulator

- Technical Parameters:

HBM Short Circuit Current Parameters:

Discharge Capacitor: 100 pF

Discharge Resistance: 1500 Ω

Pulse amplitude: 5~8000V(5%±5V)

Peak Current Ips:

0.17 A ±10% @250 V

0.33 A ±10% @500 V

0.67 A ±10% @1000 V

1.33 A ±10% @2000 V

2.67 A ±10% @4000 V

5.33 A ±10% @8000 V

Rise Time: 2 ns ~10 ns

Pulse Width: 150 ns + 20 ns

Ringing Amplitude: <15% peak current

HBM 500 Ω Resistor Current Parameters:

Peak Current Ipr:

375 mA ~550 mA @ 1000 V

1.5 A ~2.2 A @ 4000 V

Ipr/Ips: ≥ 63%

Rise Time: 5 ns ~25 ns

MM Short Circuit Current Parameters:

Discharge Capacitor: 200 pF

Discharge Resistance0 Ω

Pulse amplitude: 5~1000V (5%±5V)

Peak Current Ip1:

0.44 A ±20% @25 V

0.88 A ±20% @50 V

1.75 A ±10% @100 V

3.5 A ±10% @200 V

7.0 A ±10% @400 V

Ip2/Ip1: 67%~90%

Cycle: 66 ns ~90 ns

MM 500 Ω Resistor Current Parameters:

Peak Current Ipr: 0.85 A ~1.2 A @ 400 V

100 ns Current Value I100: 0.23 A ~0.40 A @ 400 V

I200/I100: 30%~55%

- General Parameters:

Output Voltage:

HBM 5 ~ 8000 V (5%+5 V)

MM 5 ~ 1000 V (5%+5 V)

Polarity: +/-/alternate

Frequency: 0.1 Hz~5 Hz

Trigger Times: 1~999

Trigger Mode: Auto/ Manual/ external trigger

Input Power Supply:

AC 100 V~240 V, ±10%

50 Hz/60 Hz

Ambient Temperature: 15℃~35℃

Storage Temperature: -10℃~50℃

Relative Humidity: 25%~75%

Dimension: 450 mm（L）x190 mm（W） x320 mm（H）

Weight: 10 kg
