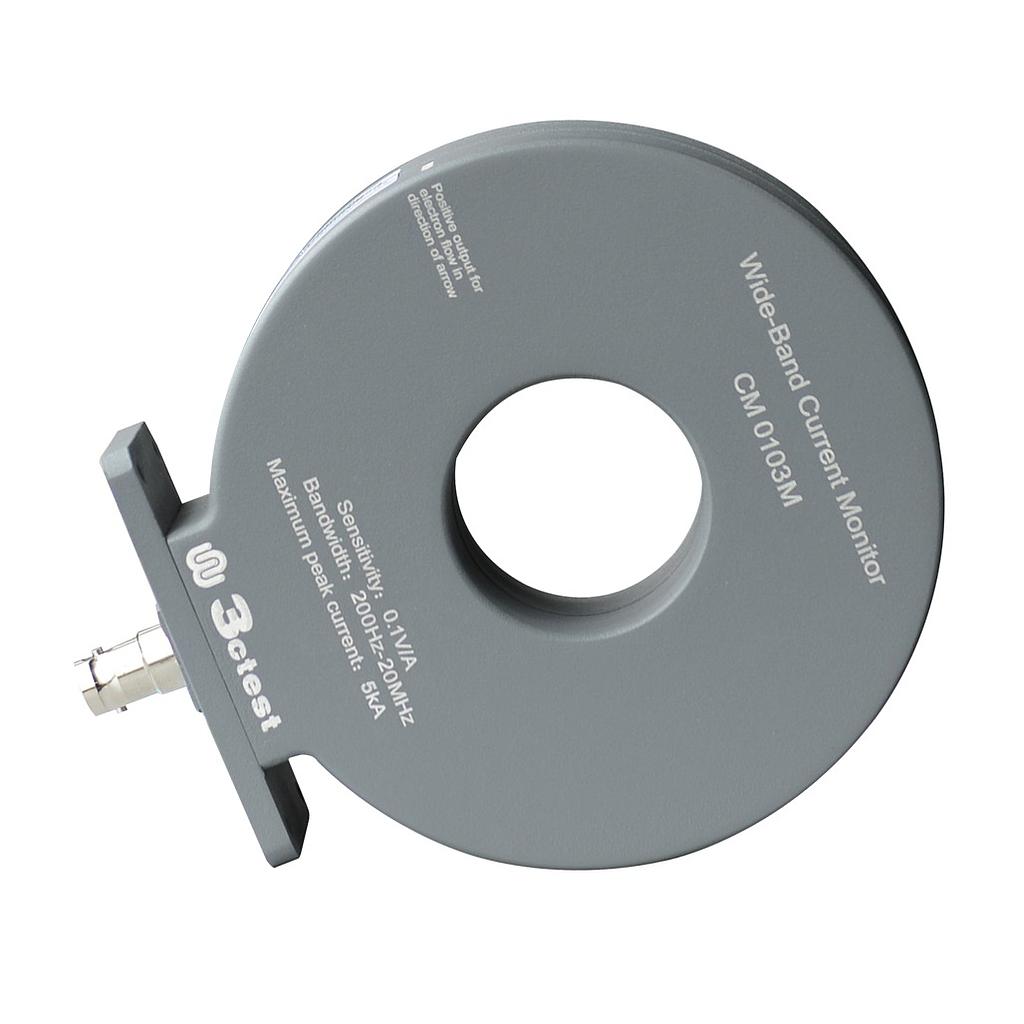

3ctest CM 0103M Wide-band Current Monitor (5,000 A, 200 Hz~20 MHz)
Manufacturer3ctest(View more products from this manufacturer)
ModelCM 0103M
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Sensitivity: 0.1 V/A
Output Resistance: 50 Ω
Max. Peak Current: 5,000 A
Max. rms Current: 50 A
Rise Time: 18 ns
Current Time Product: 0.2 A•s
Low Frequency 3 dB cut-off: 200 Hz
High Frequency 3 dB cut-off: 20 MHz
Inner Diameter: 40 mm
Outer Diameter: 116 mm
Thickness: 40 mm
Interface Type: BNC type
Operating Temperature: 0 ℃ ~ 65 ℃
Weight: 1 kg
